Ultimate Hensley Arrow® Anti-Sway Trailer Hitch - Rated For 16,000lbs

We off an easy 12-month financing plan. Give us a call (or chat) for more details. 800-410-6580

Main Unit (1)
Standard Hitch Bar (1) (Adjustable Available for extra charge)
Wrench (1)
Struts (2)
Jacks (2)
Frame Brackets (2)
U Bolt Kit (1)
Set Screw Kit (1)
Pin Kit (1)
Rod End Kit (1)
7-way Electrical Extension (1)
Chain Extensions (1)
Spare Parts Kit (1)

Specifications of the Ultimate Hensley Arrow Anti-Sway Hitch:

New for the Ultimate Hensley Arrow

• 16,000 lb rating, 1,600 lb tongue weight (with proper weight distribution bars)
• Redesigned Strut System: Reinforced metal plates and a sleeker design make the hitch stronger and easier to install.
• Updated Jack System: Features a lockout mechanism to prevent uncoiling during travel and can now be adjusted by hand.
• Enhanced Frame Brackets: Incorporates set screws and U-bolts, eliminating the need for drilling, making installation safer, easier, and stronger.
• Updated Lower Unit: Reinforced top and bottom plates, along with added gussets, increase weight capacity and improve durability.

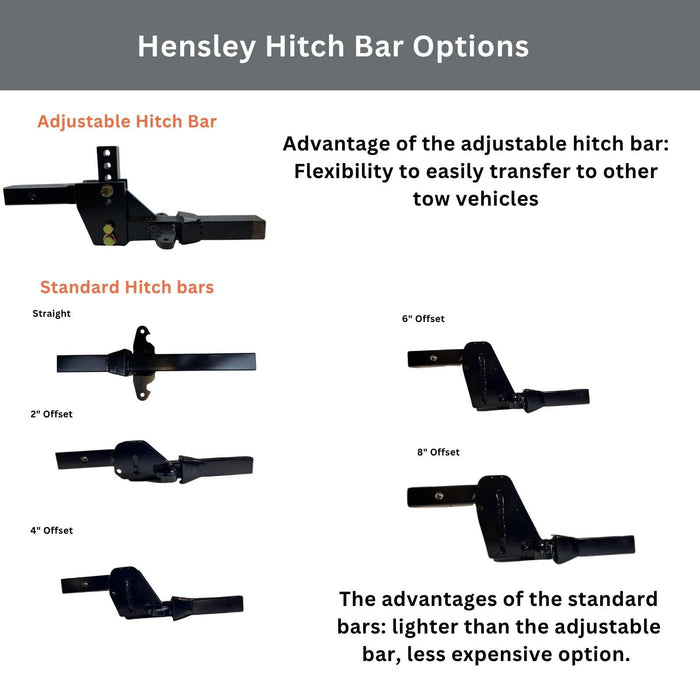

• Our offset hitch bar design has been upgraded with double-thick, reinforced metal side plates. Choose between our adjustable hitch bar or solid offset hitch bars that range from straight – 8” offset to fit any tow vehicle.
• The Ultimate Arrow features an updated upper unit offering a sleek, modern look, while our two-stage coating process provides long-lasting protection against chipping for ultimate durability
• As low as $207 month through in-house financing

Same Great Features as the Original Hensley Arrow

• Use Patented Converging Linkage System
• Continuous Sway Elimination
• Improve Steering Over Uneven Roads
• Improved Handling During Braking
• Tighter Turning Radius
• 60-Day Money Back Guarantee
• Lifetime Warranty

The Ultimate Hensley Arrow® uses a unique strut system to eliminate trailer sway.

The Ultimate Hensley Arrow is designed for higher towing capacity, supporting up to 16,000 lbs with a tongue weight of 1,600 lbs, compared to the Pro Pride 3P's 14,000 lbs towing capacity and 1,400 lbs tongue weight.

Additionally, the Ultimate Arrow is more affordable, priced $2,995 for its maximum capacity, while the Pro Pride 3P costs $3,695 for less capacity.

The Ultimate Arrow features an updated Hydroform upper unit offering a sleek, modern look, while our two-stage coating process provides long-lasting protection against chipping for ultimate durability, while the Pro Pride 3P uses a powder-coating pre-treatment.

In terms of hitch bars, the Ultimate Arrow offers reinforced metal adjustable or fixed bars, tested for strength. The Pro Pride 3P only does an adjustable hitch bar without the same reinforcement.

For installation, the Ultimate Arrow’s strut assembly is straightforward, allowing for setup in 90 minutes or less, whereas the Pro Pride 3P's yoke system makes installation more complex and time-consuming.

Both hitches are no-drill installations and provide a sway-free towing experience, but the Ultimate Arrow stands out for its higher capacity, ease of use, and cost-effectiveness.

How the Hensley Hitch Works

Ultimate Hensley Arrow Installation Video

Ultimate Hensley Arrow Product Manual

In this new video interview, Andy shares his decades-long experience with the Hensley Arrow®—and why it remains his top recommendation for eliminating trailer sway and restoring confidence on the road.

The Hensley Arrow is significantly better than a cheaper friction-based hitch because it completely eliminates trailer sway, rather than just reacting to it after it starts. Watch the difference.

Here’s how:

Sway Elimination vs. Sway Control: A friction-based hitch tries to manage sway by using resistance to limit side-to-side movement, but it doesn’t prevent sway from occurring in the first place. The Hensley Arrow, on the other hand, eliminates sway entirely by using its unique strut design system, ensuring your trailer remains stable regardless of external forces like wind or passing trucks.

Control in Critical Moments: When strong forces hit your trailer, a friction hitch can become overwhelmed, making it harder for you to regain control. The Hensley Arrow keeps the trailer stable from the start, preventing sway from developing, and giving you complete control in critical moments.

Safe in All Conditions: Friction hitches are unpredictable in changing weather, especially in rain where moisture reduces their effectiveness. The Hensley Arrow’s design is unaffected by weather conditions, ensuring a safe towing experience in both dry and wet environments.

Learn more about the dangers of friction based sway control hitches.

No Compromise on Maneuverability: While friction-based systems restrict movement in an attempt to control sway, this can also limit your ability to steer and stabilize your trailer effectively. The Hensley Arrow doesn’t rely on friction, so you maintain full control over your vehicle and trailer without compromise.
